Mr Carlson's Super Probe LiIon Battery Pack Kit

Figure 1

Figure 2

Figure 3

Intro SP-BatPak 800mAh Li-Ion Kit

As seen on YouTube and commented on many other sites, Paul Carlson designed a very useful non-contact very high gain electronic probe for investigating just about any kind of electrical signal from audio to RF. The SuperProbe & Amp can be powered from any supply of 3.5 to 5.5VDC.

This Kit uses 3.7V Li-Ion battery (typical 3.7-4.2VDC) to power the probe & amp and includes a TP4056 charger module, battery connector cable, micro-USB charger cable, wire and some screws.

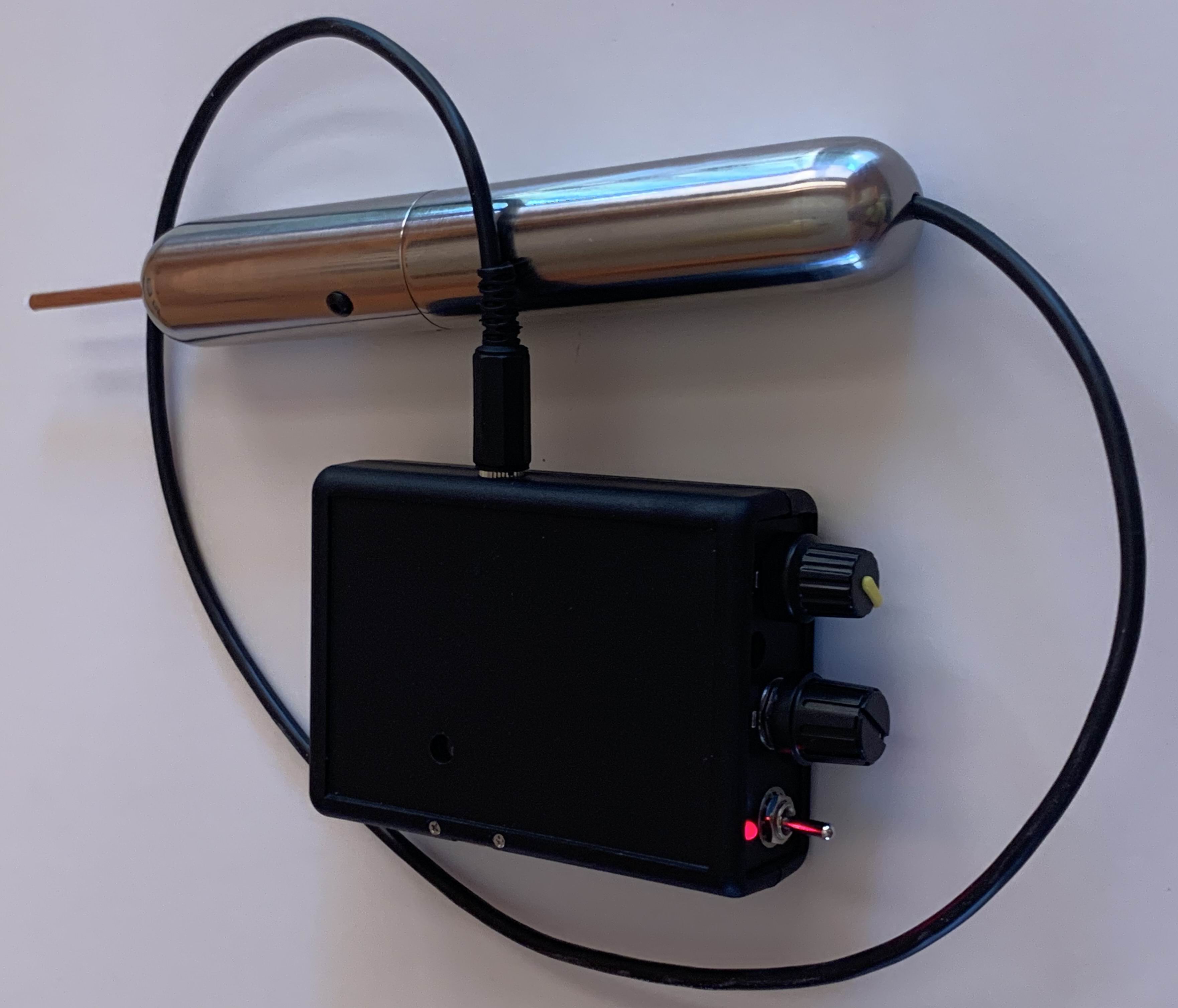

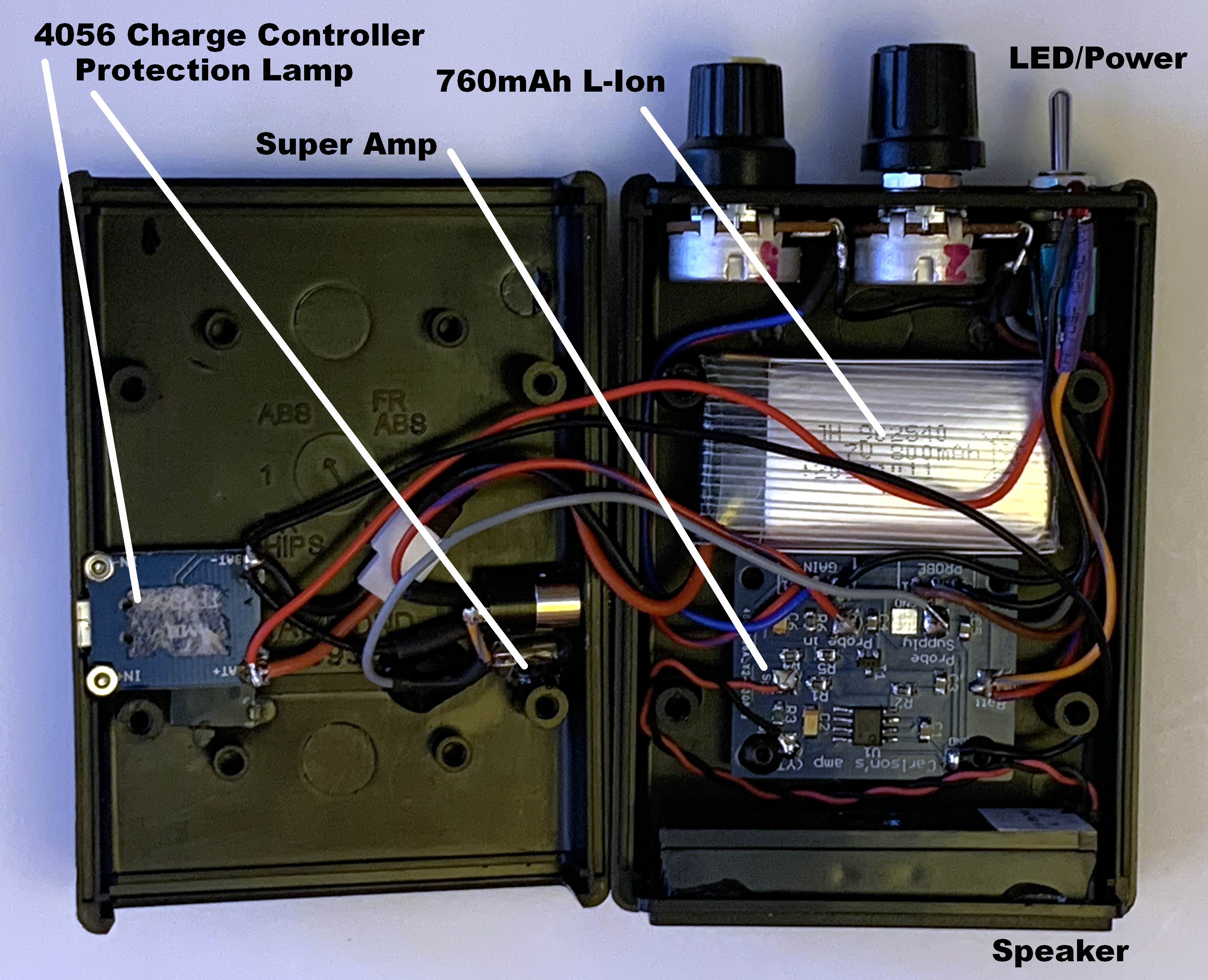

You need to be creative in packaging the probe amp and this power supply in your own housing. Note that Figure 2 & 3 show typical compact probe, amp and packaging but this kit contains only Figure 1 parts (plus some wire and shrink tubing).

SHIPPING NOTE:
We can only ship this kit to USA destinations and only by ground due to the USPS restrictions for Li-Ion batteries.

Anyone interested in building the probe should first review:
Mr Carlson's YouTube video @ https://www.youtube.com/watch?v=uVkJqqZroN0
Yannick99 @ https://www.instructables.com/Carlsons-Super-Probe/
Web search for many other reviews and assembly hints.

The Assembly:

Basic instructions, schematic and a photo of a typical amp housing are included.

MC BatPack Instructions

Bat Pack Schematic

Typical Packaging

Super Probe
Item	#
Super Probe PCB 26 Piece MK1 Kit	(1)
Super Probe PCB 35 Piece MK2 Kit	(1)
Super Probe Just Bare PCBs MK0 Kit	(1)
Super Probe Li-Ion Battery Pack Kit	(1)

Intro SP-BatPak 800mAh Li-Ion Kit

SHIPPING NOTE: We can only ship this kit to USA destinations and only by ground due to the USPS restrictions for Li-Ion batteries.
