NEW! SuperProbe Kit Selection Guide
MK0 CSP_PCB-3 MK1/MK1ASM CSP_PCB-MK1 MK2 CSP_PCB-MK2 MK3 CSP_PCB-MK3 BatPack SP_Bat-1 CaseKit SP-Case1 We now have quite a few kit options for you to chose from. Here is a list of the kits with components included and components you must provide. (Unless indicated, all components must be assembled to complete the SuperProbe.)

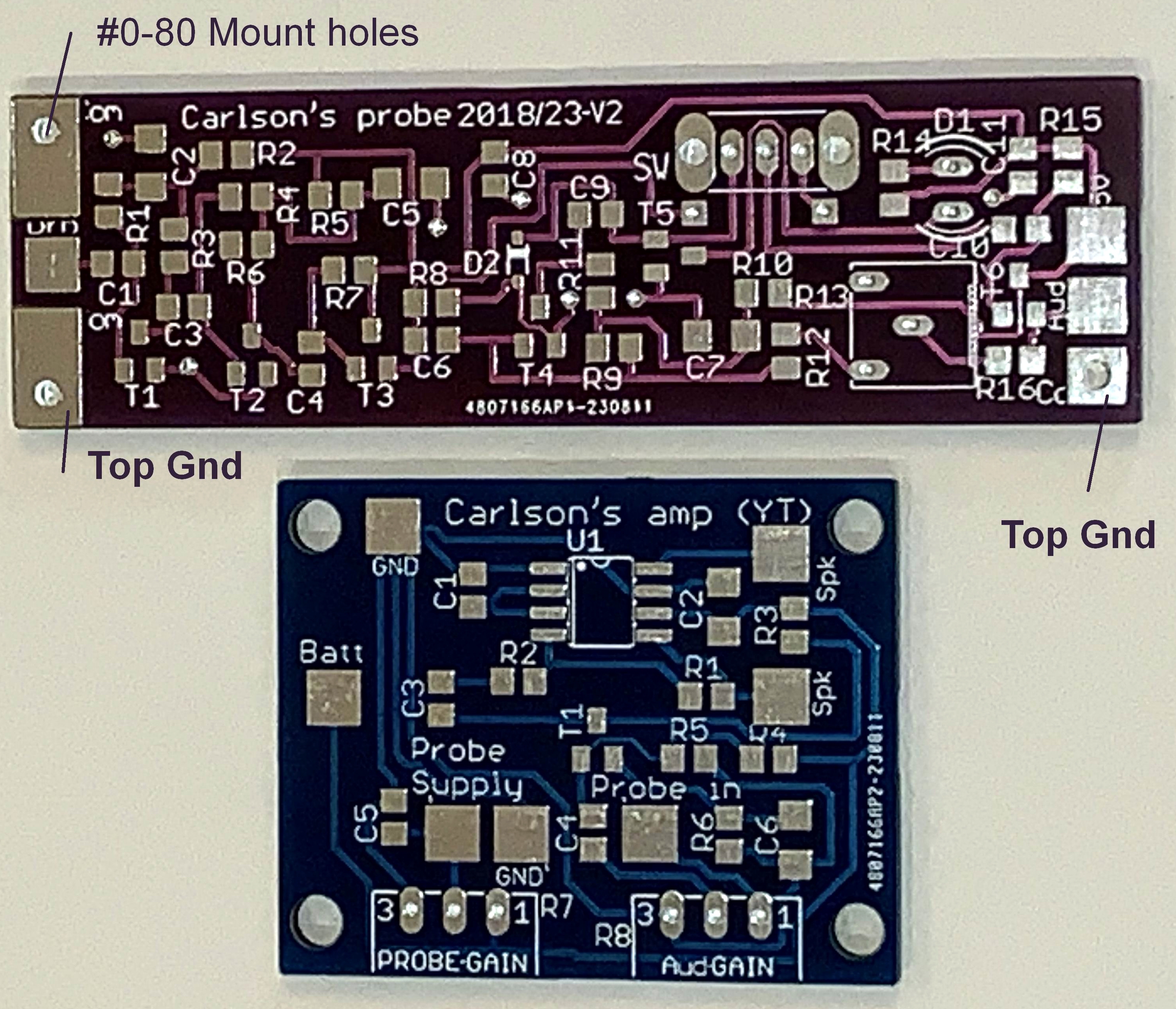

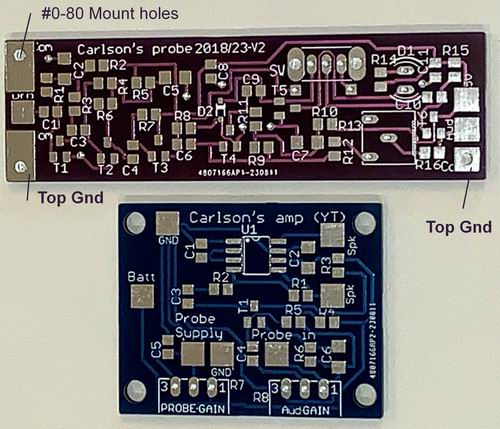

  1. MK0:
      2. We supply: PCBs only

      You provide: SMD/TH parts/POTS/switches/lamp/knobs/wire/battery/speaker/amp case/LEDs/probe case/probe wire/probe tip/probe connectors

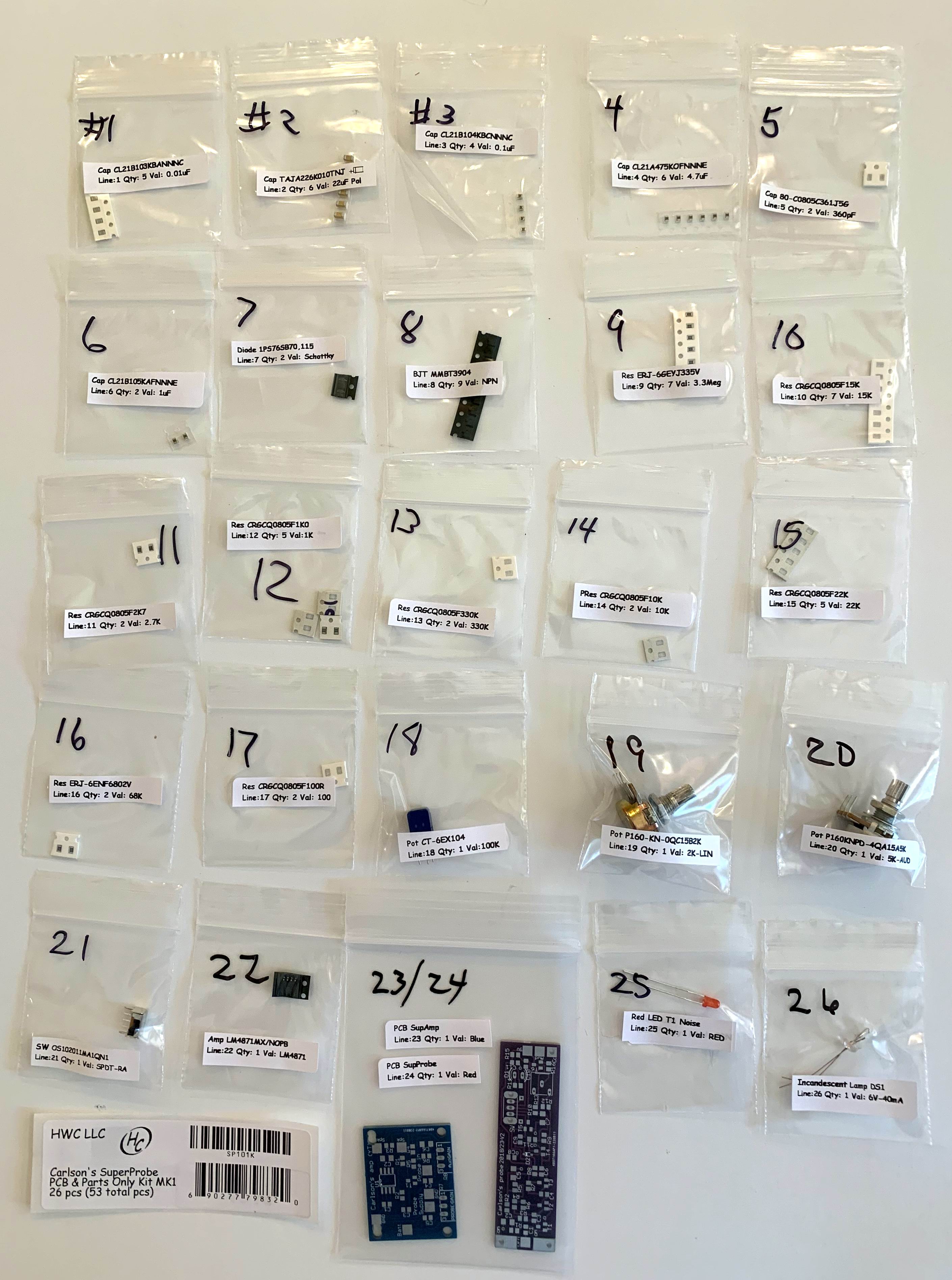

  2. MK1/MK1ASM:
      3. We supply: PCBs/SMD/TH parts/gain & vol POTs/lamp

      You provide: pwr switches/knobs/wire/battery/speaker/amp case/pwr LED/probe case/probe wire/probe tip/probe connectors

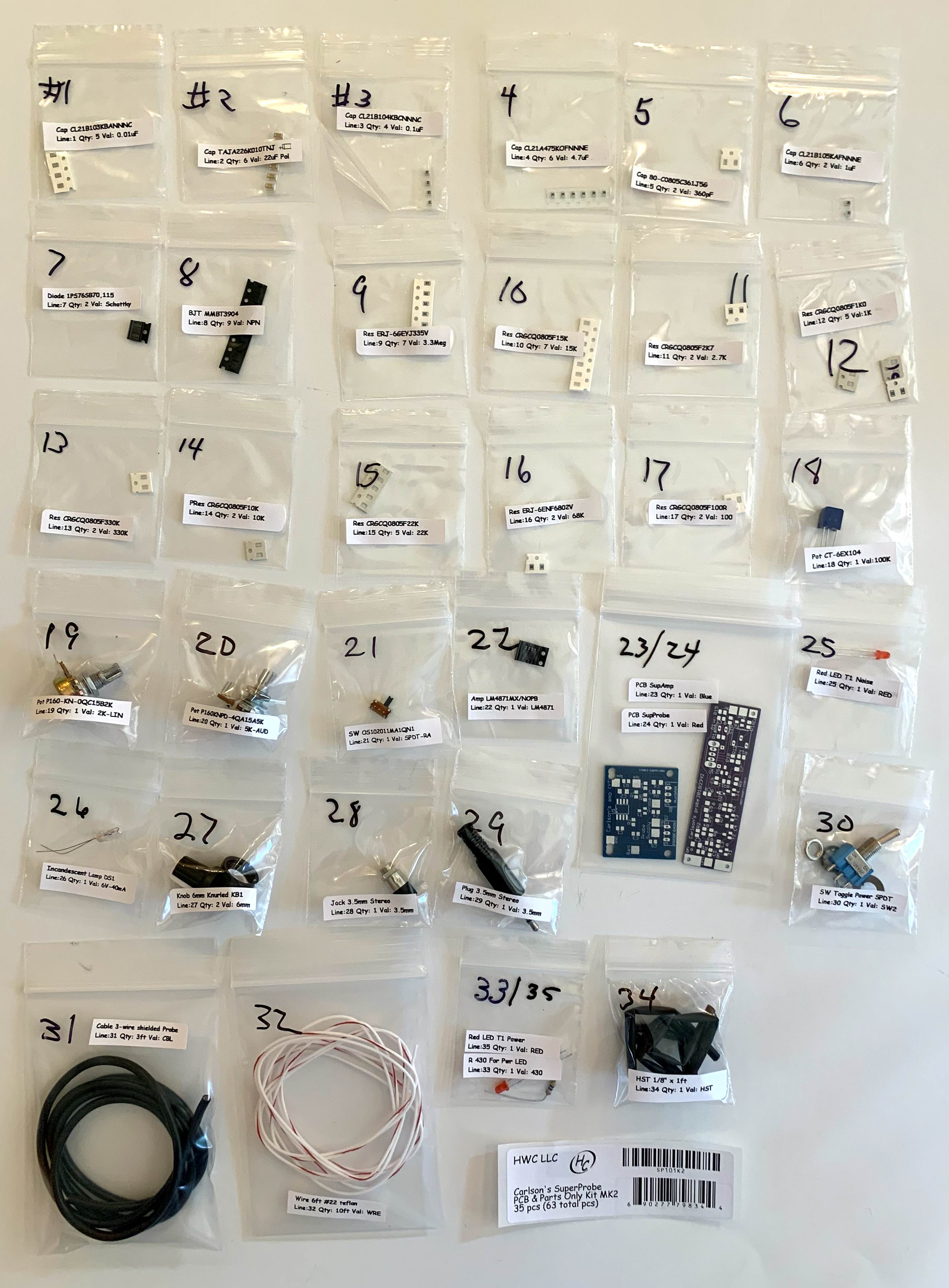

  3. MK2/MK2ASM:
      4. We supply: PCBs/SMD/TH parts/gain & vol POTs/lamp/pwr switches/knobs/wire/pwr LED//probe wire/probe connectors

      You provide: /battery/speaker/amp case/probe case/probe tip

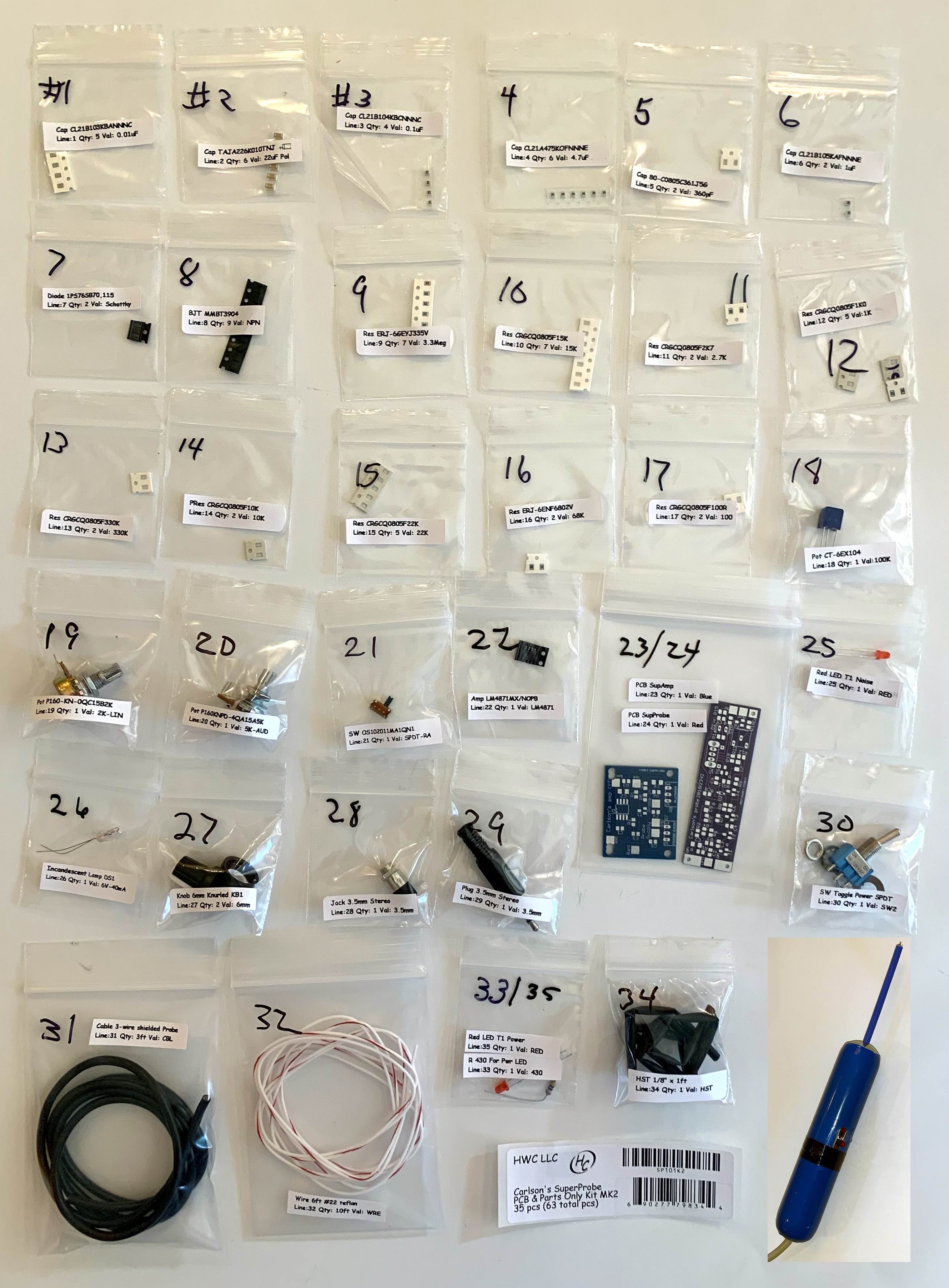

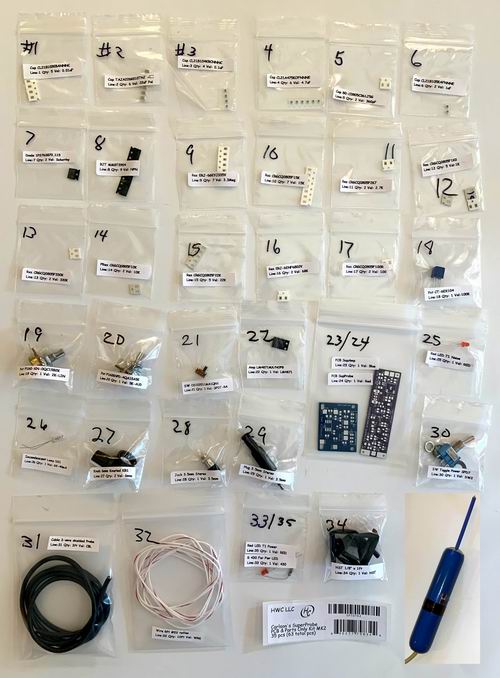

  4. MK3:
      5. We supply: PCBs/SMD/TH parts/gain & vol POTs/lamp/pwr switches/knobs/wire/pwr LED/probe wire/probe connectors/SS probe case & support parts/probe tip

      You provide: /battery/speaker/amp case

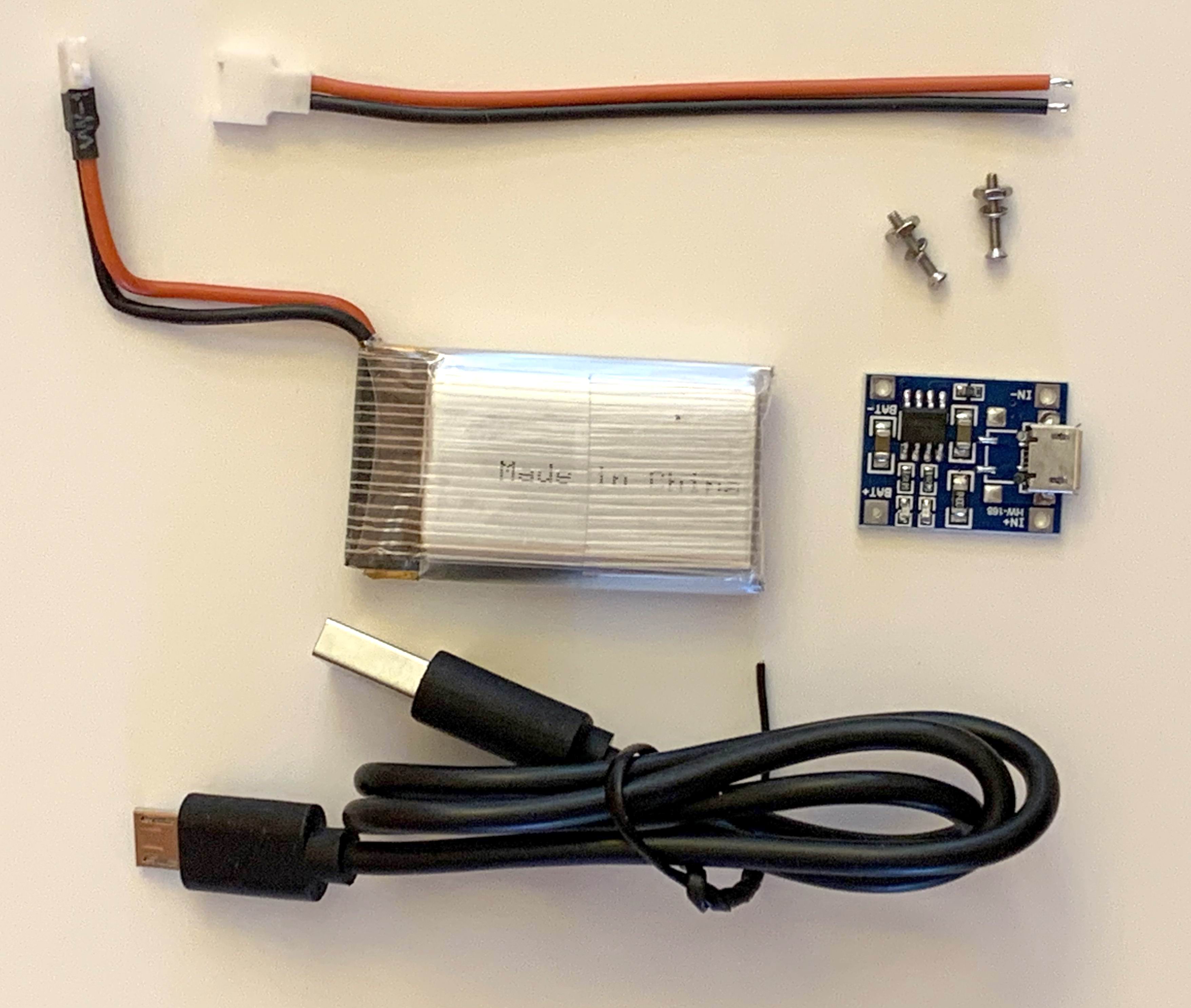

  5. BatPack:
      6. We supply:800mAh Li-Ion rechargable battery, USB 4056 charger module and mounting hardware, USB cable, male battery connector cable. Use this kit with any project to provide 3.7V rechargable power.

      You provide: You provide: Everything else.

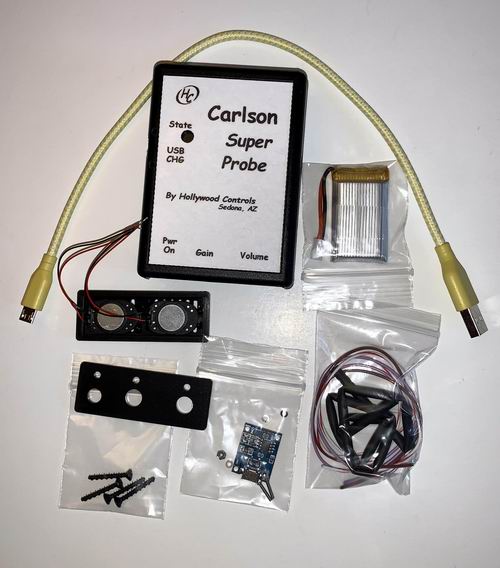

  6. CaseKit:
      7. We supply:Machined ABS case, 2W 4ohm speaker mounted to panel, 800mAh Li-Ion rechargable battery, USB 4056 charger module and mounting hardware, USB cable, male battery connector cable. Use this kit with MK0, MK1, MK1ASM, MK2, MK2ASM, or the MK3 kit.

      You provide: Everything else to provide a working probe or combine with our other kits as noted above.
