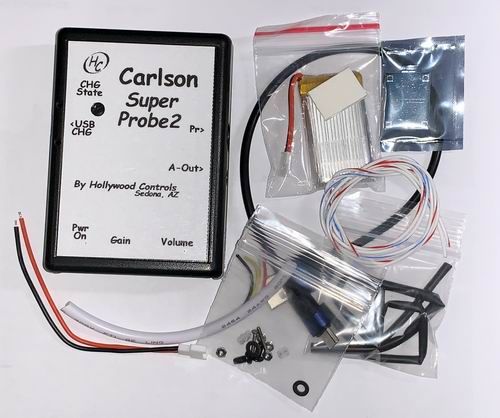

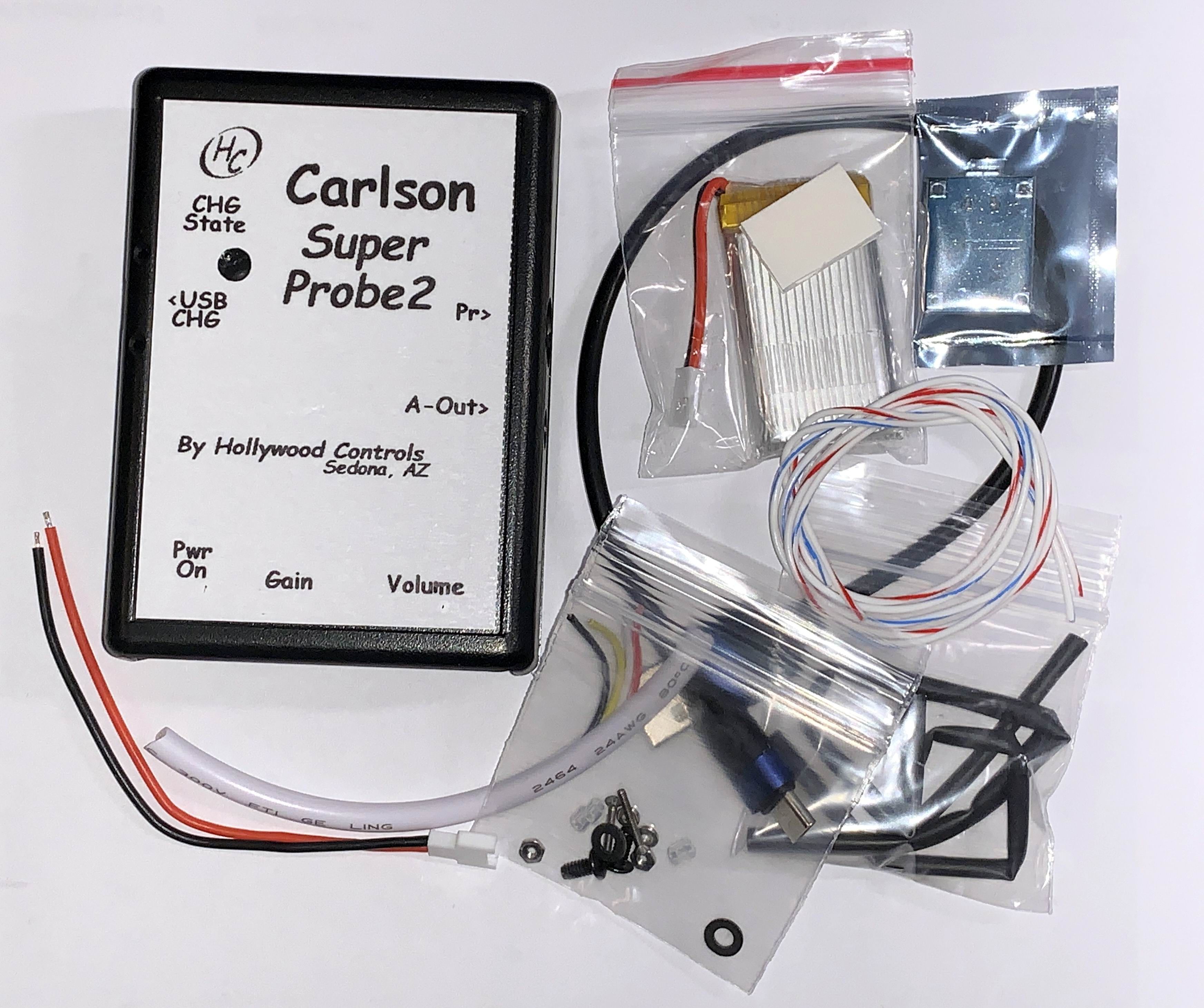

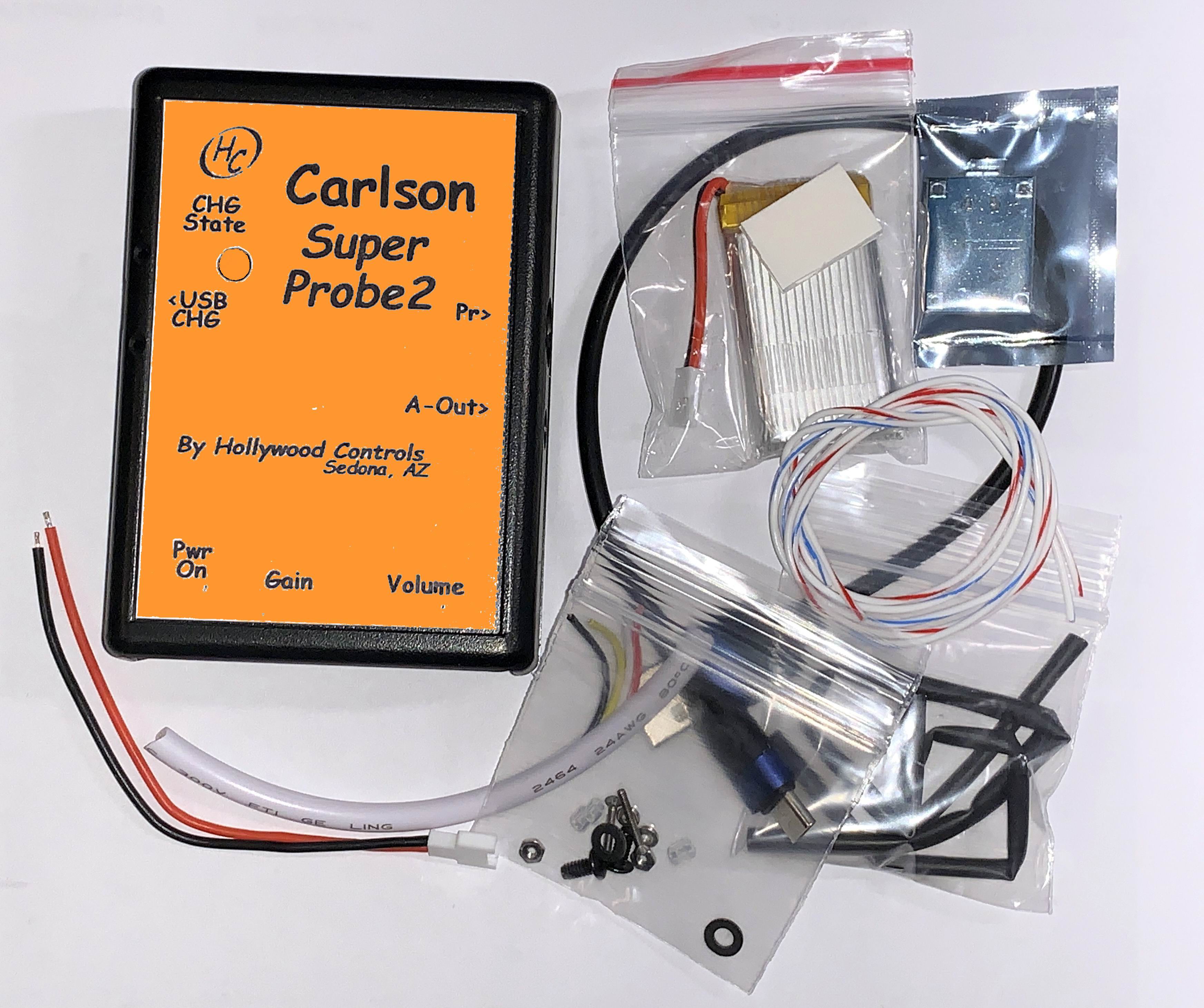

SuperProbe2 Case with 800mAh Li-Ion Battery & 4ohm Speaker Kit
This is our 2nd generation SuperProbe2 Case Kit.
This kit complements our MK2 & MK3 kits to provide a compact and self-contained
housing for the SuperAmp2 and controls.
This Kit uses a 3.7V Li-Ion
battery (typical 3.7-4.2VDC) to power the probe & amp and includes a TP4056 charger module, battery connector
cable, micro-USB charger cable, wire, #0-80 screws/nuts/washers and spacers. The included speaker comprises a pair of 8ohm 1W speakers
in parallel pre-mounted to the front panel.
This Case Kit requires many other components for completion that are included in our
SuperProbe2 MK2 or MK3 Kits). Please purchase it separately!

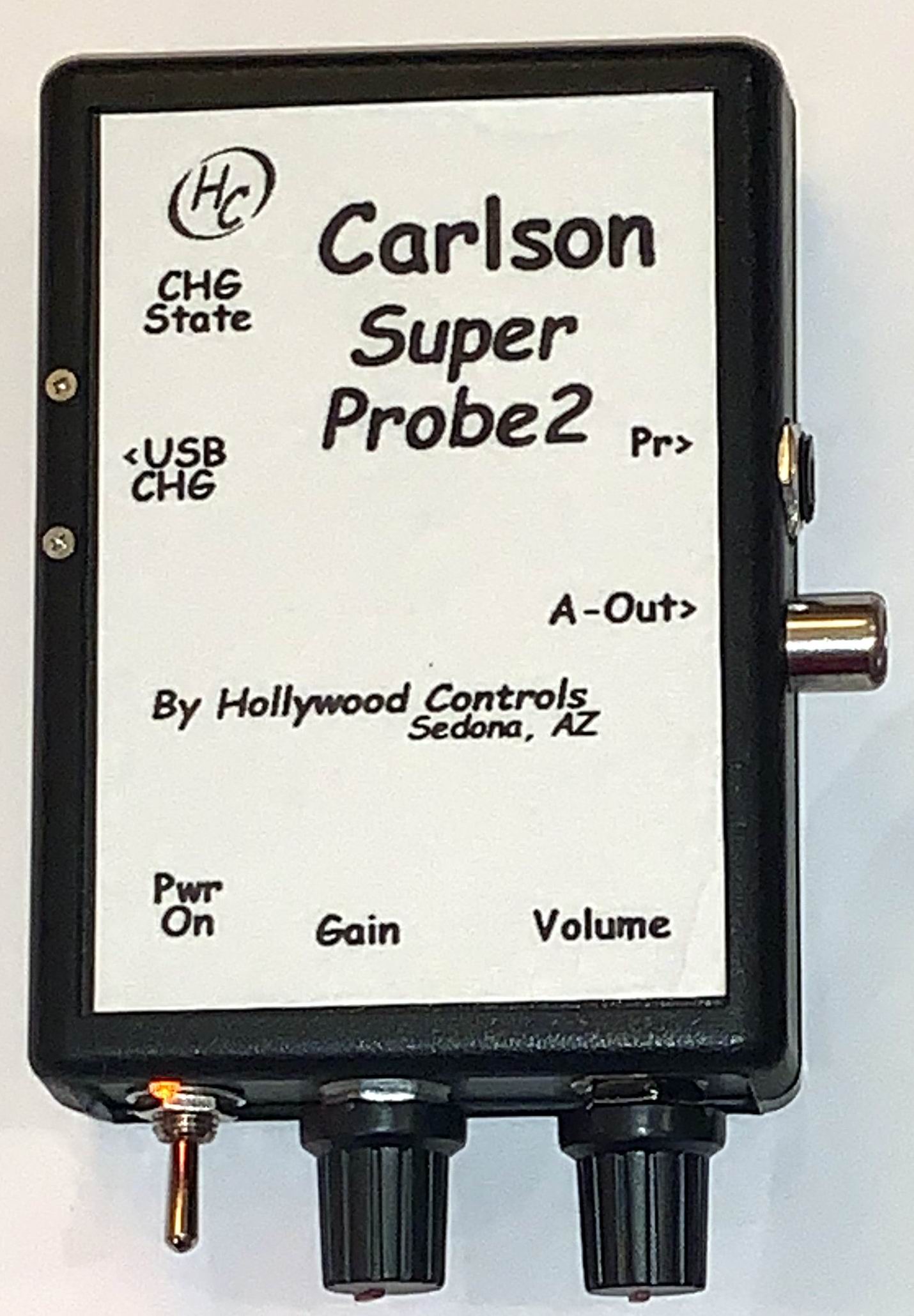

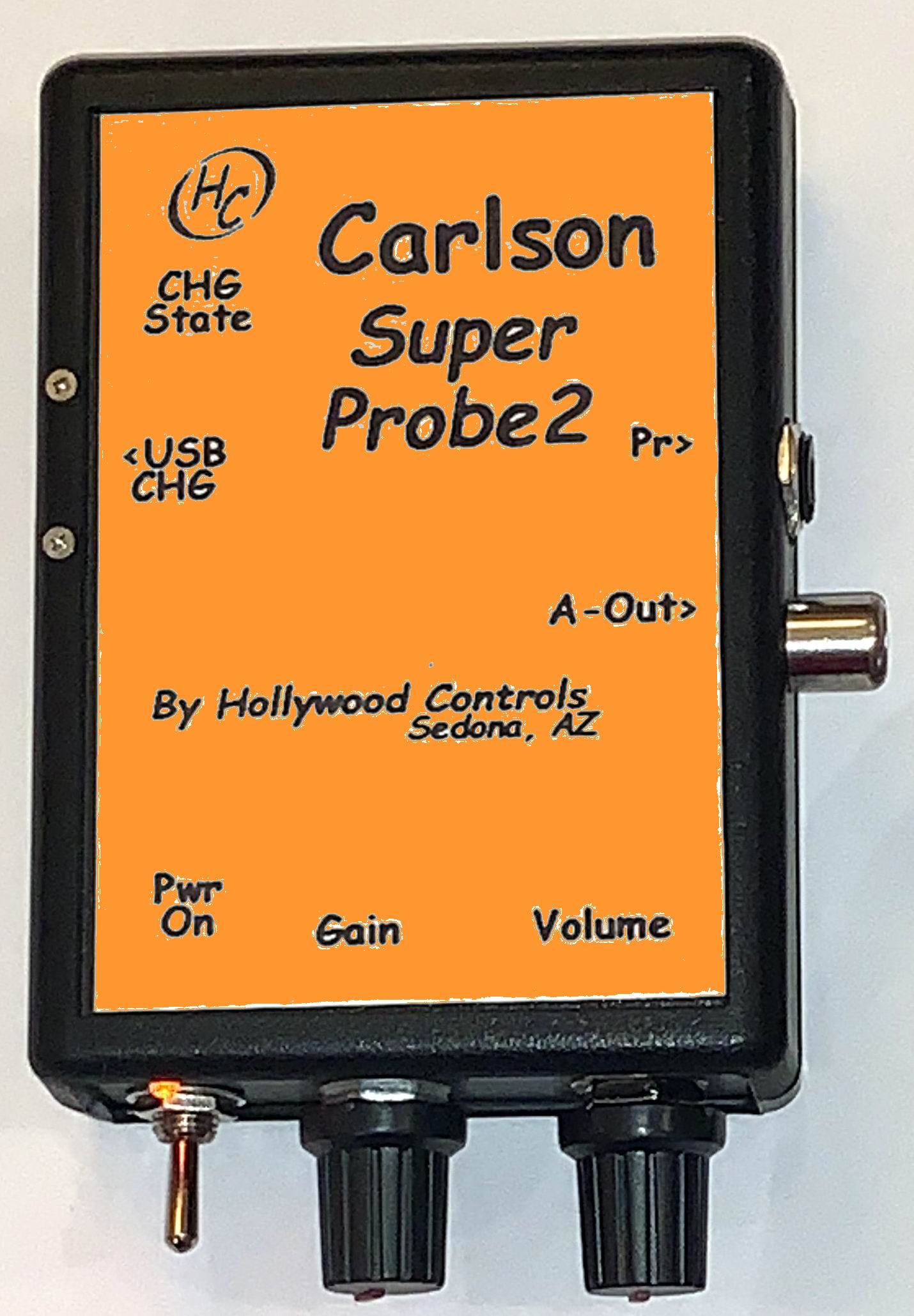

The black ABS case shown in the pictures is made by Hammond, part #1593LBK 3.6" x 2.6" x1.1".
SHIPPING NOTE:
We can only ship this kit to USA destinations and only by ground due to the USPS restrictions for Li-Ion batteries.
Anyone interested in building the probe should first review:
Mr Carlson's YouTube video @ https://www.youtube.com/watch?v=uVkJqqZroN0
Yannick99 @ https://www.instructables.com/Carlsons-Super-Probe/
The Assembly:

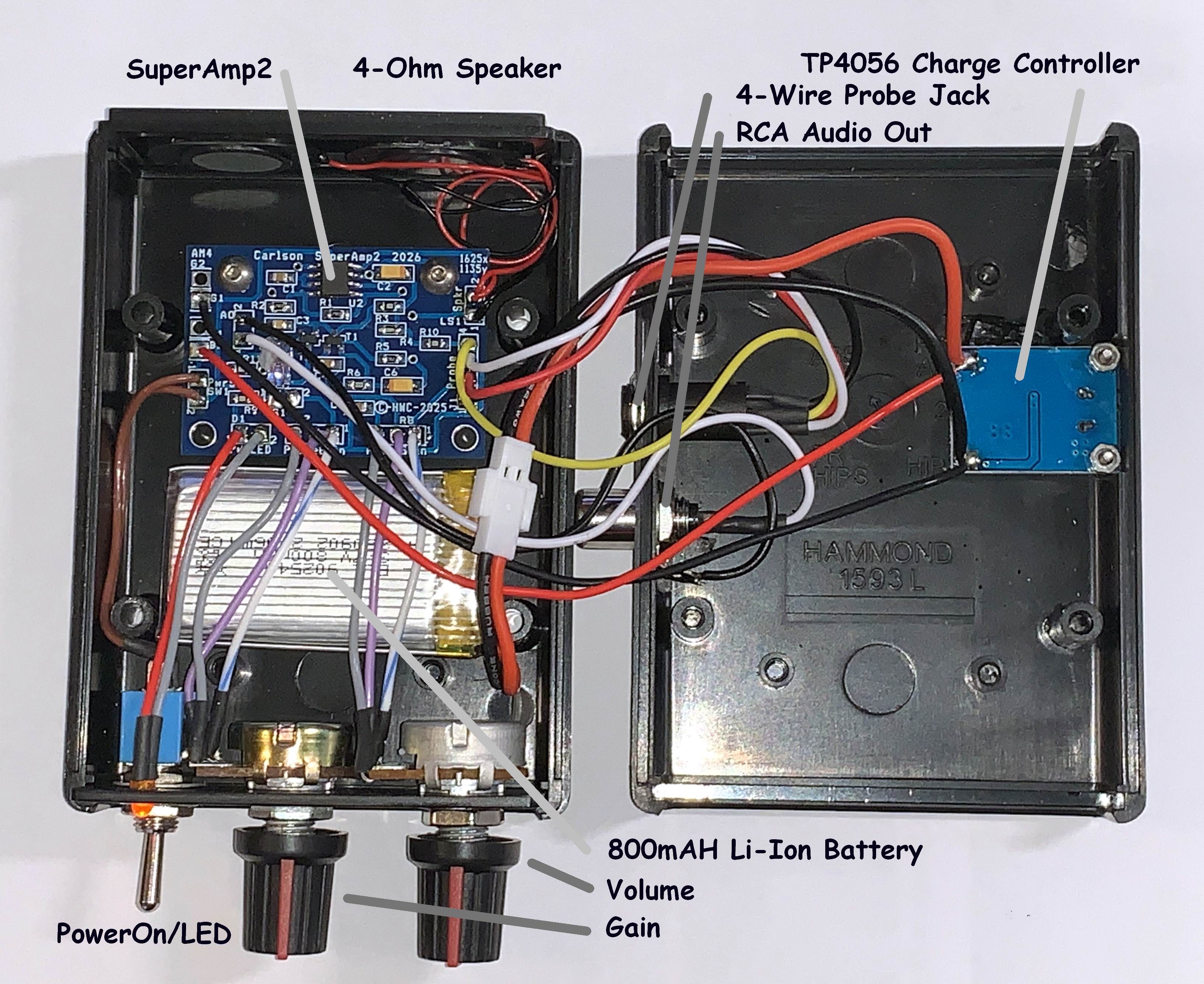

Kit assembly instructions, schematics and a photo of a typical amp housing are included wiith the CaseKit and complement the instructions
included with the SP101K2 and SP101K3 kits.
|
|
